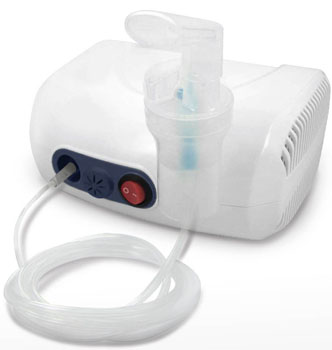

NE 503

  • Chiled mask & adult
  • Effective medication inhalation
  • Mask or mouthpiece options
  • 5 PCS replacement filters
Model Number NE 503
Power 230 or 120V AC, 50/60HZ
Power Consumption below 55W
Compressor Flow 6-8L/Min
Medication Capacity 8ml maximum
Particle Size 0.1 to 10um
MMAD approximatly 4um
Nebulization Rate 0.2ml/min minimum
Noise Level below 60dB at 1M distance
Compressor Pressure 2.1-2.5 bar
Operation pressure Range 0.8-1.3 bar
operating Temperature Range 10C to 40C (50F to 104F)
Operation Humidity 10 to 95%RH
Storage Temperature Range -20C to 70C (-4F to 158F)
Storage Humidity Range 10 to 95%RH
